KxT Chain Link Mesh Fencing 9 Gauge 1.8 M Chain Link Fence

Name: KxT Chain Link Mesh Fencing 9 Gauge 18 M Chain Link Fence
Brand: X MESH
Price: 1.25 USD

Wholesale KxT Chain Link Mesh Fencing 9 Gauge 1.8 M Chain Link Fence from china suppliers

Type : Fencing

Series : Hot Galvanized

Feature : Durable and long-lasting

Selvage : KxT

Line Post : 2"

Terminal Post : 2-1/2"

Color : Silver

Height : 6'

Mesh Opening : 2"

Wire Gauge : 6#

Brand Name : X MESH

Model Number : X MESH-022

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 200m2

Price : USD1.25-5.85/m2

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000m2/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and pallet packing

Contact Now

9 Gauge 2 Inch 6 foot ASTM A392 Airport chain link mesh fencing

chain link mesh fencing Introduction:

Qijie Company Chain link is a traditional versatile product that can be utilised for many applications. Chain link is manufactured from either galvanised only wire or a galvanised core and pvc coated wire that is formed and inter woven into a diamond pattern. The rolls of Chain link are usually available in 25 or 12.5 metre rolls depending on the height required. Standard available finishes are galvanised, green RAL 6005 and black RAL 9005 with other special colours available for larger amounts.

chain link mesh fencing Description:

chain link mesh fencing, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications. It is woven by a way that the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern fence.

Chain link fence is most commonly available galvanized which is silver in color. Chain link fence fabric is typically produced in 50' rolls’ length(15.24m), and the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size, and it is ideal for industrial and commercial fence applications. The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).

Nominal coated wire diameter			Available variance		Zinc coating weight, min.				Breaking strength minimum
Nominal coated wire diameter			Available variance		Class 1		Class 2		Breaking strength minimum
ga	inch	mm	inch	mm	oz/ft2	g/m2	oz/ft2	g/m2	lbf	Newtons
6	0.192	4.88	+/- 0.005	+/-0.13	1.20	366	2.00	610	2,170	9,650
9	0.148	3.76	+/- 0.005	+/-0.13	1.20	366	2.00	610	1,290	5,740
11	0.120	3.05	+/- 0.005	+/-0.13	1.20	366	x	x	380	1,690

chain link mesh fencing Specification:

Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized
Fabric Galvanized 9 gauge	Code	Size (Mesh x Gauge x Height)	Ends
	CL-9X36-G	2 x 9 x 36	KxK
	CL-9X42-G	2 x 9 x 42	KxK
	CL-9X48-G	2 x 9 x 48	KxK
	CL-9X60-G	2 x 9 x 60	KxK
	CL-9X72-G	2 x 9 x 72	KxB
	CL-9X84-G	2 x 9 x 84	KxB
	CL-9X96-G	2 x 9 x 96	KxB
	CL-9X120-G	2 x 9 x 120	KxB
	CL-9X144-G	2 x 9 x 144	KxB

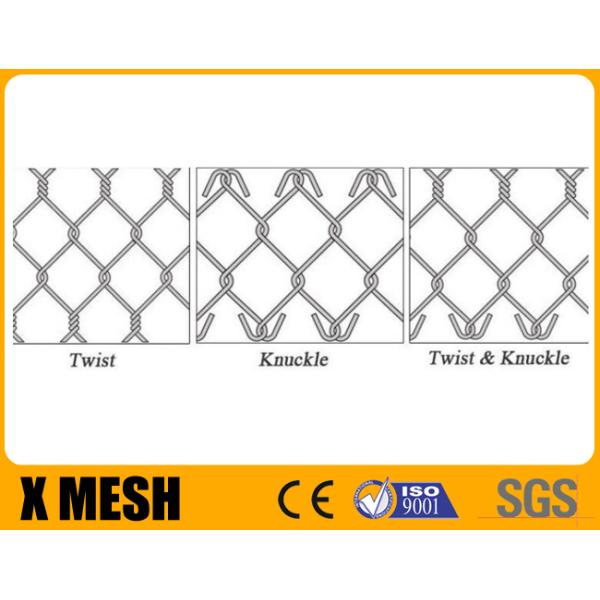

1. 1. Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb); 2. Size Column: mesh size in inches x gauge of wire x height of fence in inches;

chain link mesh fencing Application:

It's widely used in school playgrounds,so it's well known as Playground fence,Sport fence. Chain link fence is extensively used as fence for school,playground,garden,high-way,railway port,residence,etc.Also can be used for breeding animals.Children's Playgrounds,Playing Fields,Recreational Grounds.
